In Open field
WB8101 Sumisansui R Wide
Maximum 10 m*100 m (W*L) irrigation coverage.
Flagship product for open field.
Flagship product for open field.

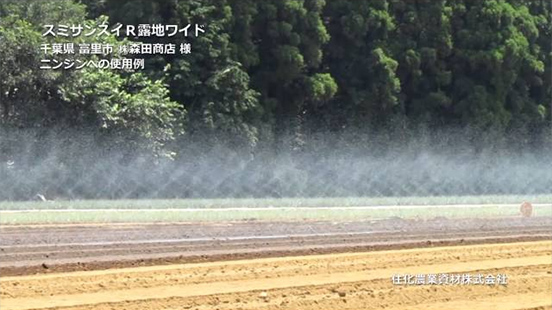

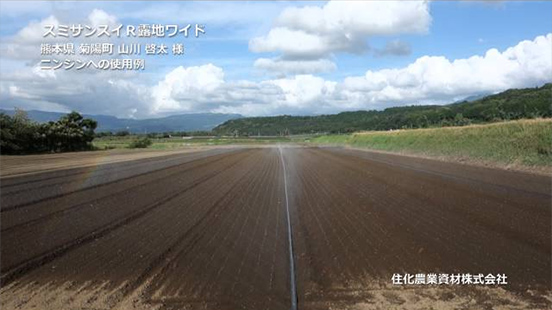

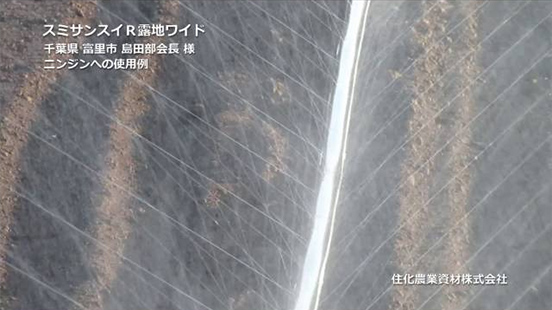

- It irrigates 5 meters to both sides from the irrigation tube at 0.2 MPa in a windless condition.
- Irrigation performance is highly uniform from the beginning of the tube up to 100 meters.
- Made of special black polyethylene with excellent durability against wounds and sunlight.
Use

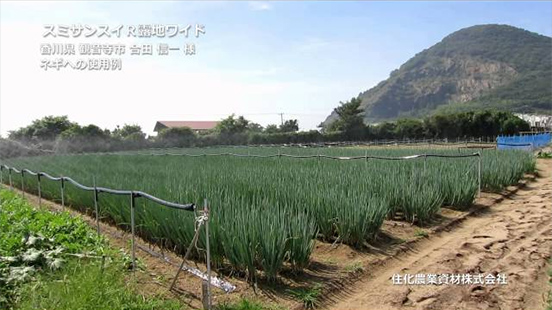

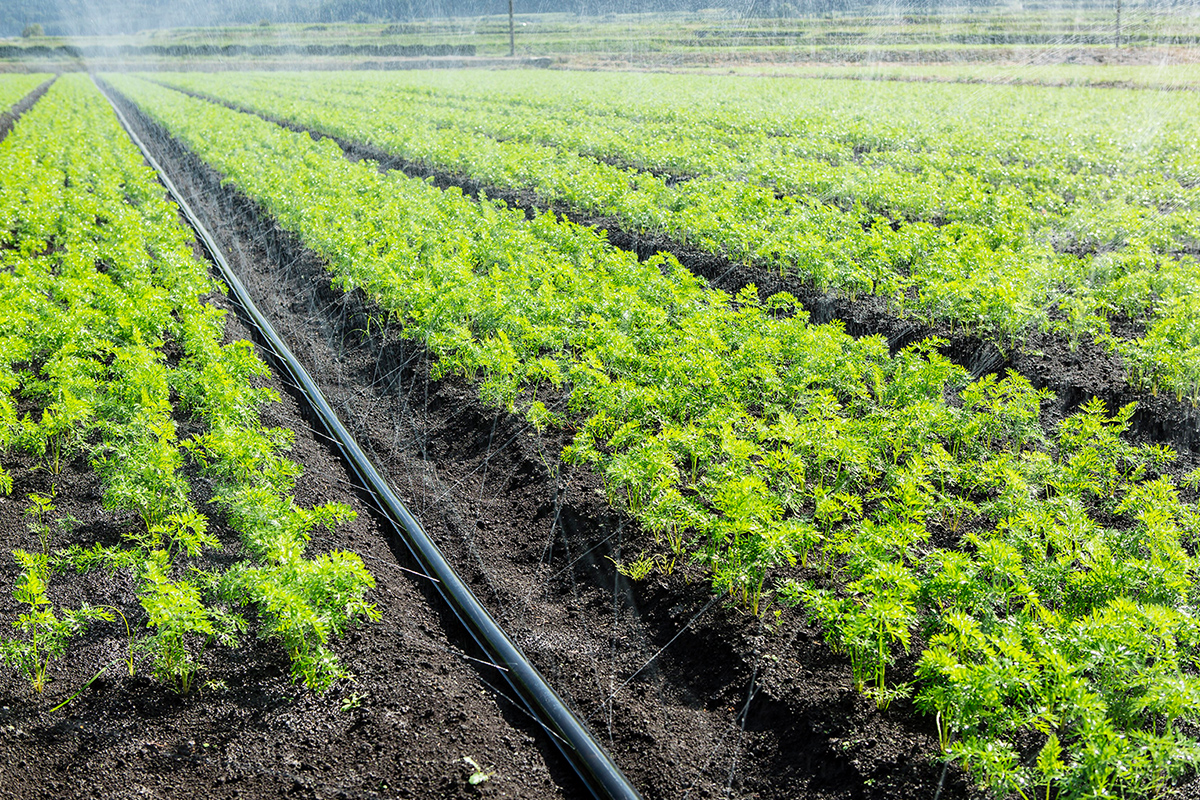

- All kinds of open field crops from seeding to young plant stage
- Low height crops such as leaf vegetables and root vegetables
- Turfs such as sport grounds and gardens
Precaution
- Lay down the irrigation tube flatly.
- Operate irrigation under appropriate pressure.

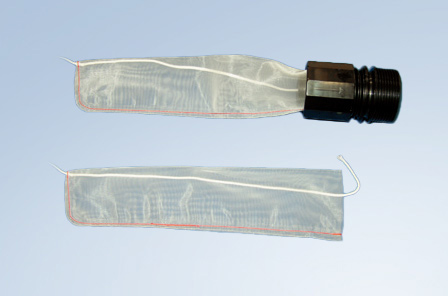

- Install a filtration system to prevent spray holes from clogging.
- Filter recommendation: Over 80 mesh
Product Details
Specification
| Material | Polyethylene |
|---|---|
| Product of Origin | Japan |
| Length (meter/roll) | 100 |
| Packing (rolls/box) | 2 |
| Box size (in cm, LWH) | 44*44*17 |
| Box weight (kg) | 15.0 |
| On a pallet (rolls/pallet) | 56 |
|---|---|
| Tube width (in mm, flattened) | 62 |
| Tube diameter (mmφ) | 34 |
| Recommended filtration (#mesh) | 80 |

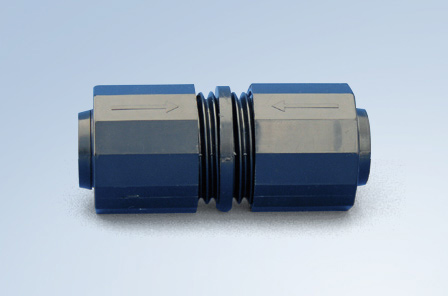

| Type of fittings | R |
Irrigation performance and water flow rate per pressure
| Operation pressure (MPa) | 0.20 | 0.15 | 0.10 |
|---|---|---|---|
| Coverage: Max. Length (m) | 100 | 80 | 80 |
| Coverage: Width (m) | 10 | 9.6 | 7 |
| Recommended tube Interval for placing multiple tubes (m) | 8.0 | 7.7 | 5.6 |
| Average precipitation rate (mm/h) | 11.9 | 10.3 | 11.5 |
| Average flow rate (Litter/min·m) | 1.59 | 1.31 | 1.07 |
| Flow rate at 20m (Litter/min·m) | 1.67 | 1.33 | 1.08 |
| Flow rate at 40m (Litter/min·m) | 1.67 | 1.32 | 1.08 |
| Flow rate at 60m (Litter/min·m) | 1.61 | 1.31 | 1.07 |
| Flow rate at 80m (Litter/min·m) | 1.53 | 1.29 | 1.05 |
| Flow rate at 100m (Litter/min·m) | 1.46 | - | - |
