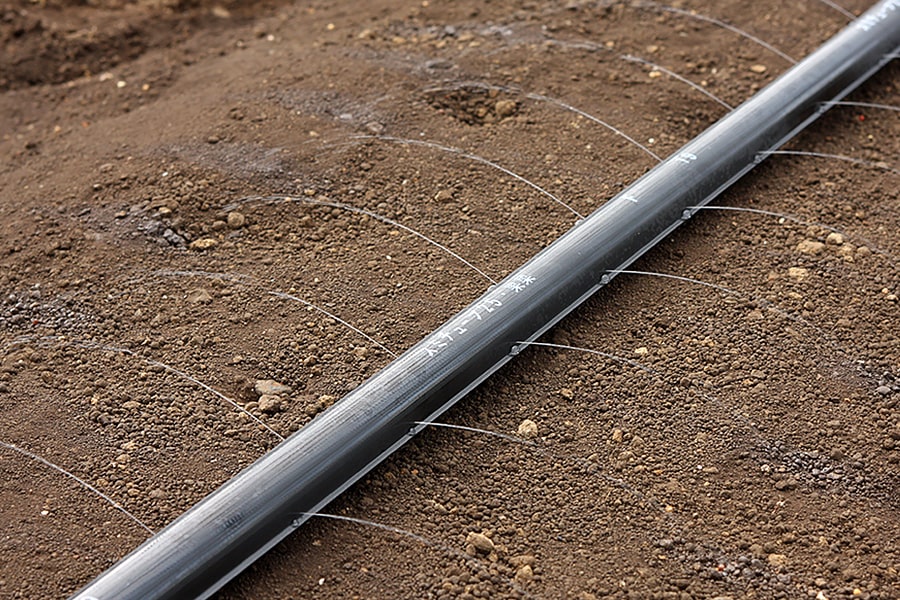

WB1023 Sumisansui New Mulch 100
It specially designed to irrigate beds under mulch with extra low pressure.
- The spray holes are at 5 cm interval on a tube.
- It is usable in extra low pressure from 0.005 MPa to 0.04 MPa.
- Irrigation performance is highly uniform from the beginning of the tube up to 100 meters.
- By turning the tube upside down, it wets small area nearby the tube.
- The light weight & compact product isn't only for professional farming but also for hobby gardens.
- Made of special black polyethylene with high durability against sunlight.
Use
- For fruit and vegetable crops using plastic mulch on a bed
Precaution
- Lay down the irrigation tube flatly.
- Operate irrigation under appropriate pressure.
- Install a filtration system to prevent spray holes from clogging.
- Filter recommendation: Over 120 mesh
Product Details
Specification
| Material | Polyethylene |
|---|---|
| Product of Origin | Japan |
| Length (meter/roll) | 200 |
| Packing (rolls/box) | 5 |
| Box size (in cm, LWH) | 32.5*32*33 |
| Box weight (kg) | 18.5 |
| On a pallet (rolls/pallet) | 240 |
|---|---|
| Tube width (in mm, flattened) | 52 |
| Tube diameter (mmφ) | 28 |
| Recommended filtration (#mesh) | 120 |
| Type of fittings | M |
Irrigation performance and water flow rate per pressure
| Operation pressure (MPa) | 0.04 | 0.02 | 0.01 | 0.005 |
|---|---|---|---|---|
| Coverage: Max. Length (m) | 100 | 100 | 100 | 100 |
| Average flow rate (Litter/min·m) | 0.37 | 0.27 | 0.19 | 0.12 |
| Flow rate at 20m (Litter/min·m) | 0.43 | 0.31 | 0.22 | 0.14 |
| Flow rate at 40m (Litter/min·m) | 0.43 | 0.31 | 0.22 | 0.14 |
| Flow rate at 60m (Litter/min·m) | 0.38 | 0.27 | 0.19 | 0.12 |
| Flow rate at 80m (Litter/min·m) | 0.35 | 0.25 | 0.18 | 0.11 |
| Flow rate at 100m (Litter/min·m) | 0.28 | 0.2 | 0.14 | 0.085 |
